The 2M2 TANK 2 Pro CNC Key Cutting Machine is a powerful and user-friendly device designed for precision key duplication – even from a photograph. Whether you’re a locksmith, automotive professional, or DIY enthusiast, this guide will walk you through the simple process of cutting a key using just a picture.
What You’ll Need:
- 2M2 TANK 2 Pro CNC
- Compatible smartphone or tablet with the dedicated app installed
- Image of the key to be duplicated (clear and well-lit)
Check full operation on Youtube:

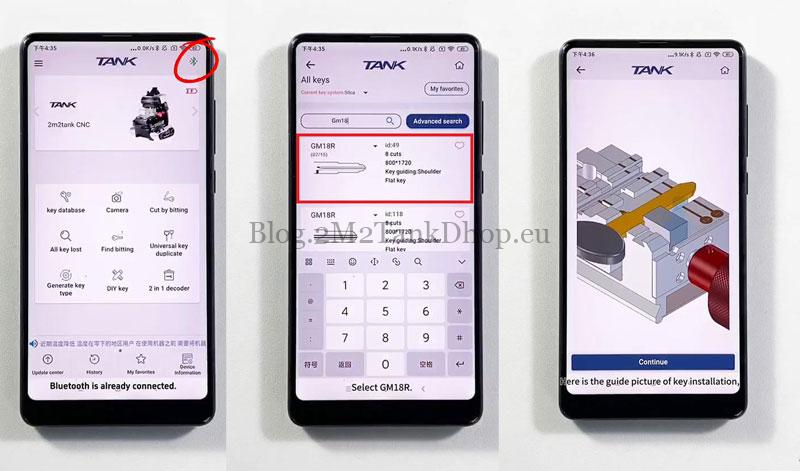

Step 1: Connect the Machine via Bluetooth
- Turn on your 2M2 TANK 2 Pro CNC machine.
- Open the companion app on your mobile device and connect to the machine via Bluetooth.
Step 2: Select Key Type
- From the app menu, choose “Cut by Bitting”.
- Search for the key type- in this example, GM18R (Mitsubishi key).

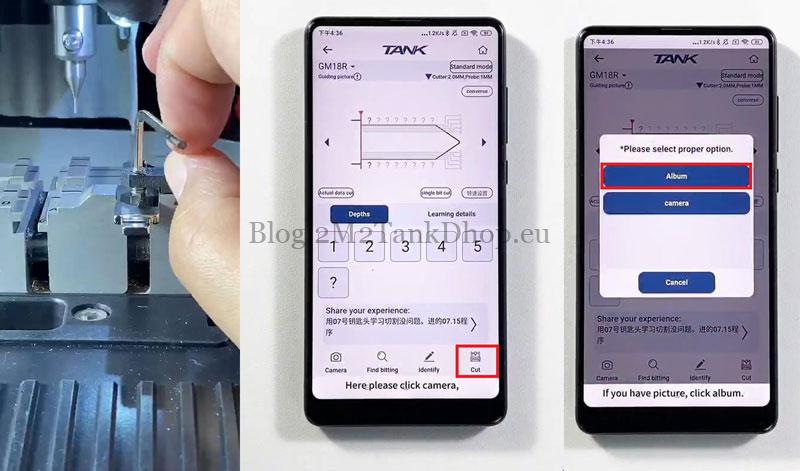

- Follow the on-screen instructions to properly install the key blank into the machine. Ensure the key is seated flat and secure.

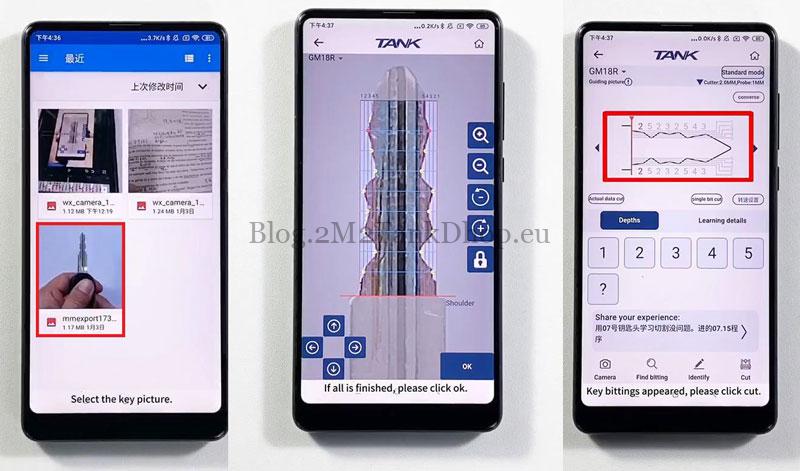

Step 3: Upload the Key Image
- Select “Camera”or “Album” to upload your key photo.
- Enlarge the image using the “+”button until the key width aligns with the frame’s edge.
- Pay close attention to the red guideline- this helps ensure accuracy.
- If the key has a shoulder, zoom in further for better detail.
- Once aligned, lock the image in place.
Step 4: Align the Cutting Points
- Manually adjust each point to match the edges of the key in the image.
- Double-check all points for accuracy, then tap “OK”.

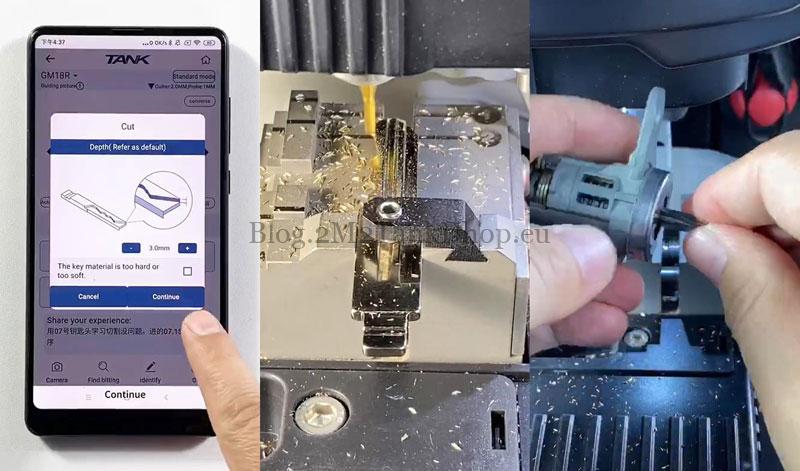

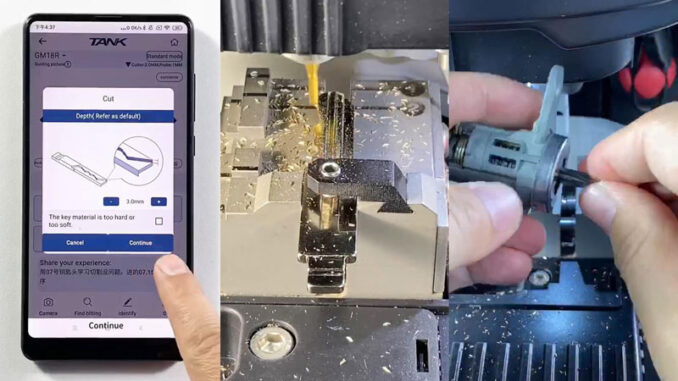

Step 5: Start Cutting
- The app will display the extracted key bitting code. Confirm by tapping “Cut”and then “Continue”.
- The machine will begin cutting automatically. This process typically takes around 40 seconds.
Step 6: Finish
- Once cutting is complete, carefully remove the newly duplicated key.
- Your key is now ready to use!
Why Choose the 2M2 TANK 2 Pro CNC Key Cutting Machine?
✅ High precision cutting from images
✅ Bluetooth connectivity for wireless operation
✅ User-friendly app with guided steps
✅ Supports a wide range of key types
✅ Fast and efficient—perfect for professional use
