This is tutorial on how to use LISHI & 2M2 TANK 2 Pro Key Cutting Machine efficiently decodes and cuts FO21 Tibbe keys for Ford and Jaguar vehicles. Below is a simplified guide to decoding and cutting these keys.
Check full operation video:
FO21 Tibbe Key Decoding Steps:
- 1st Position: If the gap is small, click once. Code: 2
- 2nd Position: If minor swing, click until a major (large) gap is found. Code: 3
- 3rd Position: If space is tight, click twice to reach a big gap. Code: 3
- 4th Position: Major swing at a big gap. Code: 1
- 5th Position: If space is tight, click once. Code: 2
- 6th Position: Immovable position. Code: 4
Full Key Code: 233124

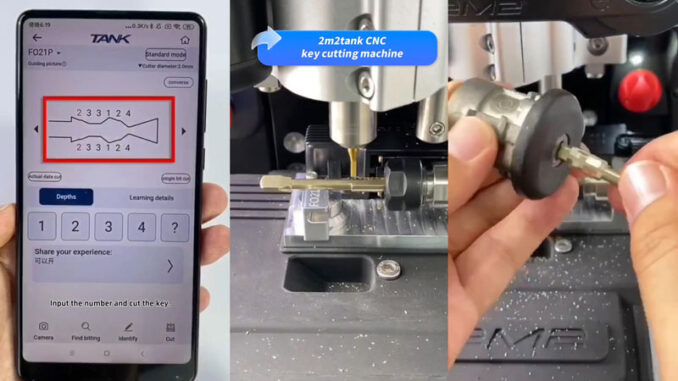

Cutting the Key with 2M2 TANK 2 Pro:
- Open the 2M2 TANK app.
- Enter the decoded key code.
- The Ford FO21 Clamp automatically rotates and cuts the key – no manual operation needed.
- Once finished, remove the key and test it.
Done.
